Moving Jenkins from One Machine to Another Machine

Moving Jenkins

Moving Jenkins from one machine to another machine was fairly straight forward, it is pretty much just a copying the folder from one machine to another and is documented in the Jenkins Wiki

java.nio.file.DirectoryNotEmptyException

The migration was smooth. I followed my previous post to move our Jenkins server to another instance, and we only get one console error related to the migration.



In the JENKINS_HOME\jobs\JOB_NAME folder, I am manually deleting the builds\lastSuccessfulBuild and builds\lastStableBuild folders, and Jenkins is happy building again :)

Sass + Compass compile css with minification and map file


Scope

I am trying to mimic the way how files are generated in the Bootstrap Distribution that contains the css file with minification and the map files by using the Bootstrap Sass.

Compass

When I compile in development mode, I will get the normal css; when I compile in production mode, I will get the minified css.

In my config.rb

output_style = (environment == :production) ? :compressed : :expanded

on_stylesheet_saved do |file|
 if File.exists?(file) && (output_style == :compressed)
  filename = File.basename(file, File.extname(file))
  FileUtils.mv(file, css_dir + "/" + filename + ".min" + File.extname(file))
  puts "   minify " + css_dir + "/" + filename + ".min" + File.extname(file)
 end
end

The output will look like this between development (default) and production.



Map File

In order to generate the map files, it can be done via a switch.

compass compile --sourcemap

Or by setting up in the config.rb.

sourcemap = (environment == :production)

Setting Up Octopus Deploy for Jenkins with nopCommerce Projects

Scope

After our previous success at setting up our Jenkins build server, we are now looking into an automatic deployment process for our nopCommerce projects by using Octopus Deploy.

Octopus Deploy

Octopus Deploy installation is straight forward and the wiki page is very detailed.

After setting up our server and tentacles, we have to bundle our artifacts into NuGet packages for Octopus Deploy to consume.

NuGet

NuGet Spec

Firstly we will initialize a nuget spec file for our project by running a command from my project folder.

NuGet Pack

Personally, I prefer to use NuGet Pack to do all my packagings as that will give me more power and better control. Unfortunately I ran into this issue that is related to the way how nopCommerce structure their project folders and I cannot change.

It is a misfortune that I have to combine the build process and packaging process into one command, I would have preferred to use NuGet Pack in a separate process for better granularity control and easier for troubleshooting. Life is imperfect and I am resort to my second option - OctoPack.

NuGet Explorer

NuGet Explorer is a tool that can examine the .nupkg NuGet packages. It is a very helpful tool that we can troubleshoot what is in the package content.

OctoPack

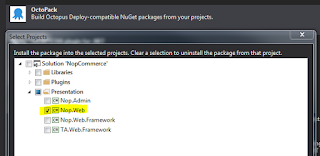

From Visual Studio, we installed OctoPack via NuGet on our Web Project only.


In our Jenkins build server, we created a new job that only responsible to build the artefacts. It is similar to the existing build only job, but with extra parameters in the MSBuild command.


This will trigger the OctoPack to run, using the Release Configuration in .Net, and uploading the package to our Octopus Server package folder by using an API key.

MSBuild .\NopCommerce.sln
  /p:Configuration=Release
  /p:RunOctoPack=true
  /p:OctoPackEnforceAddingFiles=true
  /p:OctoPackPublishPackageToHttp=http://yourUrl/nuget/packages
  /p:OctoPackPublishApiKey=API-YOURAPIKEY

The packages will became available in our Octopus Library.



In our Jenkins Server, we ran into an issue that any builds afterward will always fail and the error message is related to OctoPack.

Pushing Nop.Web 3.3.5791.28374 to 'http://octopus/nuget/packages'...

  Failed to process request. 'Bad Request'.

EXEC : The remote server returned an error : (400) Bad Request..

If I delete the package from the Octopus Library and a build will work again.

To resolve this, we need to increment the version number every times we build an artefact. The easiest way to do this is adding an OctoPack switch in our MSBuild command.

/p:OctoPackPackageVersion=3.3.${BUILD_NUMBER}

nopCommerce

One of the biggest challenge in this exercise is not just about Octopus Deploy but to get it to work with the nopCommerce. As I mentioned before, the nopCommerce structure is not NuGet friendly and the underlying technology of OctoPack is by using NuGet Pack anyway, so while I was able to dodge a few bullets get things moving, but I still have to resolve some of the known issues.

I downloaded the nopCommerce 3.6 stable version and tried to pack it and get the following.



It is noticeable that there are many missing files.

  • Administration folder
  • Nop.Admin.dll (from the bin folder)
  • Plugins folder

The reason is because we are just building the Nop.Web.proj. The Nop.Admin.proj is a standalone project as well as all the plugin projects.

There are different approaches to this but I chose the easiest one just to get things going.

  • Include the Nop.Admin project as a reference in the Nop.Web project.
  • Add an extra step that builds the NopCommerce.sln. This will pre-build all the plugins into binaries.
  • Manually include the missing folders in nuspec so they get picked up during the NuGet / Octo Pack process.



Web Config Transformation

In Octopus Deploy, we are allowed to a web config transformation after we deploy. I have my project name set up that aligned (beautifully) with our project names in Visual Studio, so that I can use the Octopus Variables when I perform transformation like this.

Web.Staging#{Octopus.Project.Name}.config => Web.config



During the transformation, we ran into the following error.

No element in the source document matches 'my_config_keys'

The error is saying a key my_config_keys is in our Web.StagingReebok.config but not in Web.config. Octopus tries to transform the key into Web.config and thrown a null exception.

Multi Tenant

Multi tenant support is not yet available in Octopus Deploy 3.2, According to roadmap, it should be available in 3.3.

In the meanwhile, Octopus Deploy documented 2 possible ways to implement the deployment strategy in a multi tenant environment. I chose the "project per brand" because I have a staging environment for each brands and it is messy to put all machines into 1 project.


Octopus Deploy Process

We have setup a simple Deployment Process as below.
  1. Send out notification email
  2. Change to app offline
  3. Deploy the package
  4. Clean up the redundant transformation config
  5. Bring the site online (from app offline)
  6. Send out notification email (again)


Octopus Step Template

I have created some custom step templates that were not available in the community library.

Octopus Notification Integration

I also added a slack integration that will send notification to all developers upon deployment. I found notification is a better channel to communicate than automated emails clogging up in the inbox. As a teaser, our notification channel looks like this.


Conclusion

It is a tedious and enormous job to deploy 20+ websites in our web farm environment. Octopus Deploy was not difficult to setup, and all our deployment jobs are now automated deployed from our continuous deployment server. Not only we are saving times, but also we are now able to eliminate any possible human errors in our deployment process.

Setting Up Jenkins for GitHub


Scope

Previously, I have setup Jenkins with TFS without much issues. This time I am setting up Jenkins to work with GitHub.

Git

We will need to install GitHub Plugin on our Jenkins server. We can verify our installation from Manage Jenkins -> Manage Plugins.



Then, we will need to install the Git Executable from git-scm.

We then need to setup our Git via Manage Jenkins -> Configure System -> Git -> Git Installations -> Path to Git executable.



We will create a Jenkins Job fill in the Source Code Management information similar to follow.


Test our build job to make sure we can get all source code in the workspace of our Jenkins server before we move on to the next stage.


MSBuild

After setting up our job to successfully clone from the Git repository, we will now set up our build process as part of our continuous integration.

Manage Jenkins -> Configure System -> MSBuild



Notice there is a warning about MSBuild.exe is not a directory. If we omit the executable part, we will get an error like the following. I believe this is minor bug in Jenkins. That's why it is always important to check the Console Output to see what the error is.


Then we set up our build job.


Troubleshooting

.Net 4.5.1

I have encountered the some errors about .Net 4.5.1 not found.

C:\Windows\Microsoft.NET\Framework\v4.0.30319\Microsoft.Common.targets(983,5): warning MSB3644: The reference assemblies for framework ".NETFramework,Version=v4.5.1" were not found.

I tried to download the Targeting .Net Platforms but I am still getting the same error.

Until I found this solution. I just copied the reference aseemblies from my dev machine to our Jenkins server with the exact same location.

C:\Program Files (x86)\Reference Assemblies\Microsoft\Framework\.NETFramework\v4.5.1

VS2012

error MSB4019: The imported project "C:\Program Files (x86)\MSBuild\Microsoft\VisualStudio\v11.0\WebApplications\Microsoft.WebApplication.targets" was not found.

Our projects were upgraded from VS2012 to 2013, and there seems an issue to do with the extra properties in the .csproj file.

The short fix is to specify the VisualStudioVersion parameter to MSBuild.

Manage Jenkins -> Configure System -> MSBuild



Or the long fix to clean the .csproj files.

NuGet

error : The build restored NuGet packages. Build the project again to include these packages in the build.

This reminds me one of the NuGet issue we had when integrating Jenkins with VSO. However, a perfect solution does not always solve the problem in an imperfect world. That's because our current process do not Restore Nuget Packages the Right Way.

Thanks to Jenkins, there is a workaround for it. We can add a windows command process before getting into the MSBuild process by using a Windows batch command.

C:\Tools\nuget.exe restore NopCommerce.sln





Conclusion

Had a fun time to set all this up (again). Plus one to our Joel Test score!
